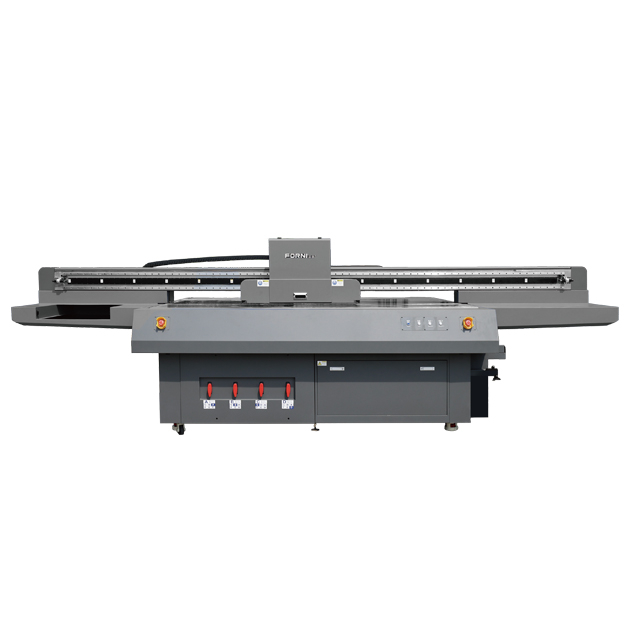

M2513/M2513TUV High-Resolution UV Flatbed Printer

Model:
M2513/M2513TUV
Download:
M2513&M2513TUV.pdf


Availability:



Inquire

Product Description

Technical Characteristics

Electromagnetic levitation printing technology, high stability magnetic encoderstrip, high precision linear motor.
Dual Y servo motors, magnetic encoder strip.
Supreme high precision plat-form.
Recycle printing function, no need repeating position.
High print quality with 3D performance and excellent touching.
International ICC standard with profile curve adjustment function.

Upgraded structure is stronger, ensuring stable printing during high speed. New Ricoh Gen6 has a higher production capacity and faster speed. With new variable ink drop technology,

it can reach three levels of change point, and can provide 5PL dot size.

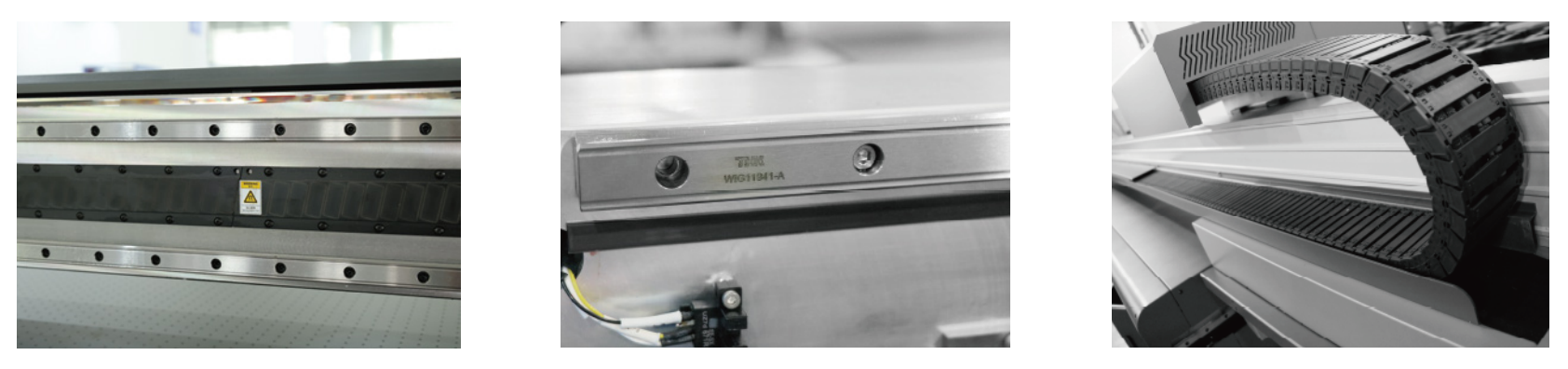

Electromagnetic levitation printing technology, high stability magnetic encoder strip, high

precision linear motor, mute THK guide rail ensures stable and high quality printing performance.

Advanced servo motor system adapts Panasonic servo motor, brings high precision and speed.

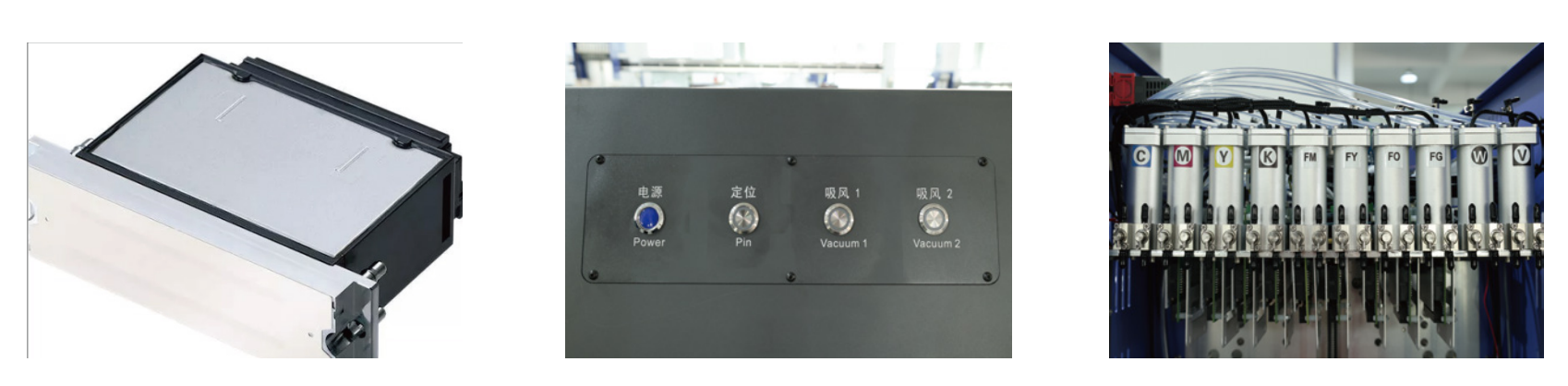

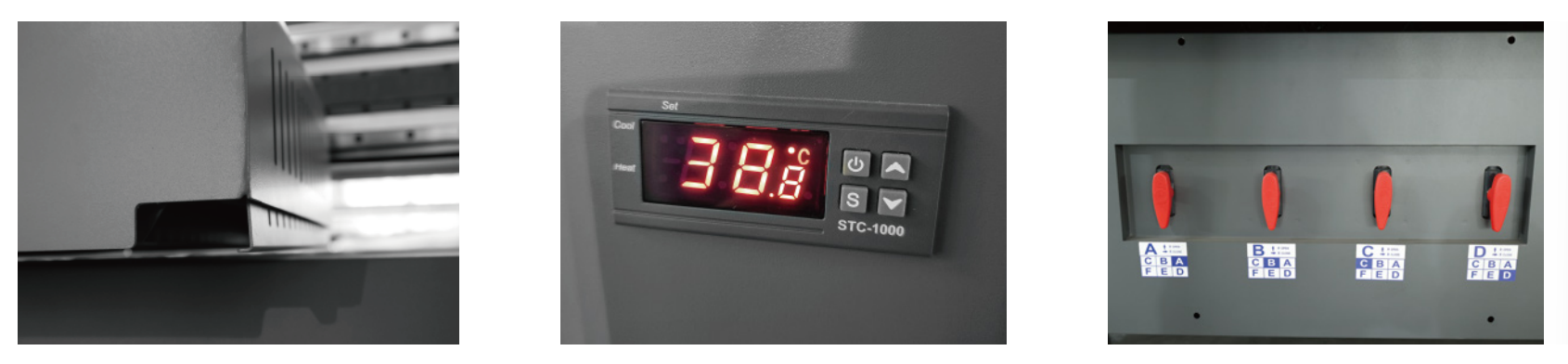

Top RIP software enables true color in output. For the printing platform has 4 divided vacuum areas, each vacuum area has independent switch control, so the customer can open or close different

vacuum areas to meet different size medias, it will ensure stable vacuum suction for the media.

Technical Specifications

Model	M2513	M2513TUV
Print Head	Ricoh Gen6 3-14pcs optional	T3200 2/6pcs Optional
Printing Size	2500mm-1300mm
Printing Technology	Gray scale piezoelectric inkjet technology
Printing Resolution	720600dpi,720900dpi,7201200dpi,7201800dpi etc	720X900dpi , 720X1200dpi
Ink Type	LED UV Ink
Ink Color	CMYK / CMYK+W / W + CMYK + Varnish , FM/FG/FY/FO optional
Media Thickness	1mm-100mm / 300mm optional
Color Control	ICC standard,ajudtment of ICC and density
RIP	Photoprint (ONXY / Caldera Optional)
Interface	USB3.0
Printer Dimension	4,850(L) x2,225(W) x 1,500H)(Unit : mm)
Machine Weight	1.8T
Environment	Temperature: 18℃-29℃, Humidity: 50%-80% (RH)
