Functional Configuration Features

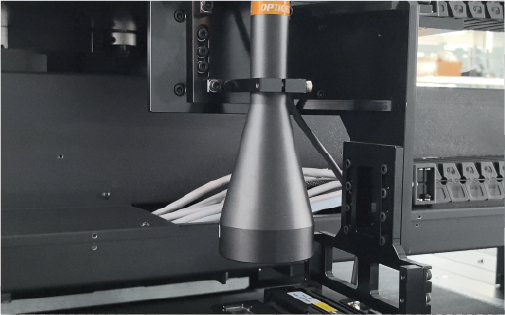

![]() | Intelligent CCD Device Achieve precise printing |
![]() | Ink Cartridge Heating System Provide guarantee for stable ink flow and color consistency no matter the temperature in the room |

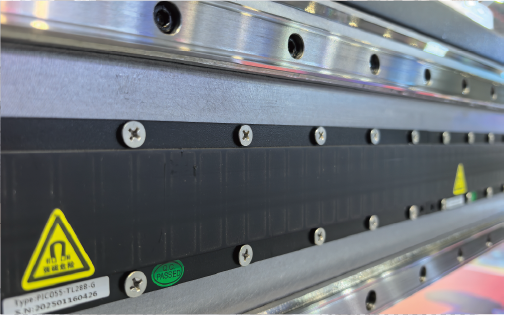

![]() | Magnetic Linear Motor and Metal Encoder Strip Ensure smooth and precise horizontal movement of the carriage |
![]() | High-precision Media Sensor Easily handle materials of various thickness-es to meet the diverse needs of customers |

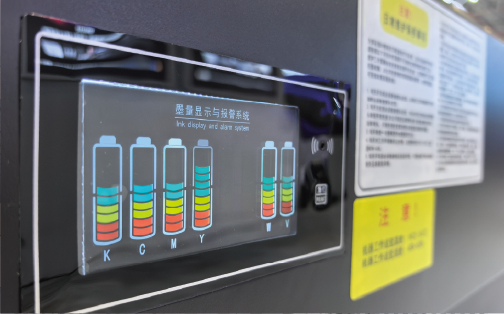

![]() | Operation Buttons and Ink Display Screen Make operation easier and help to add ink in time |
![]() | Built-in Static Elimination Device Bring high-quality and vivid printing output |
![]() | Reasonable Head Cleaning System Simplify daily print head maintenance while saving ink |

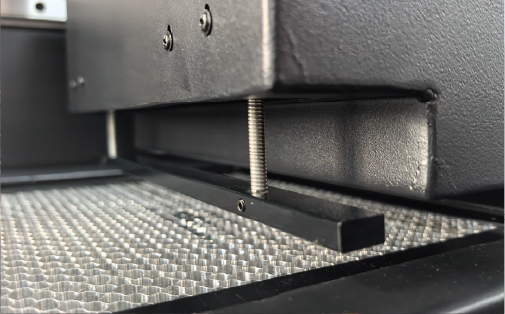

![]() | Anti-collision Device Protect the print heads from crashing |
Technical Specifications

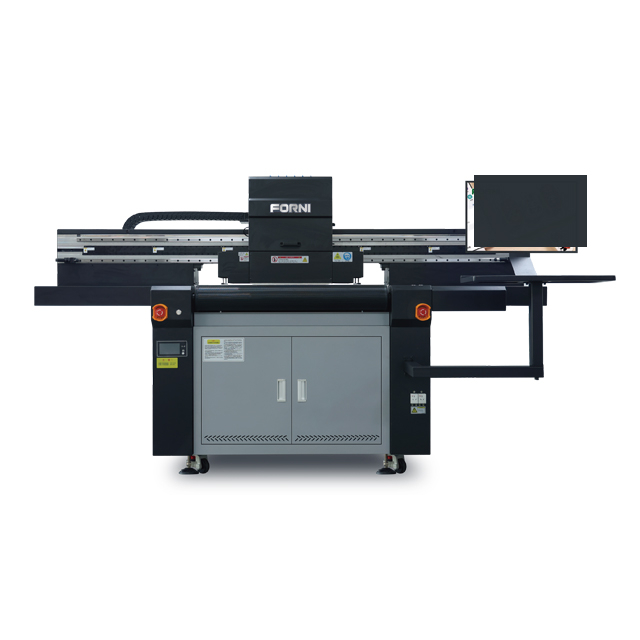

Model | MR800UV | ||
Print head | Print head QTY | Ricoh G5/G6/ EPSON I3200 Printhead Max 12PCS | |
Ink | Color Ink Type Ink Supply | CMYK+W+V UV Ink Pump Ink Supply | |
Speed | Production mode Quality mode Photo mode | CMYK+W+V 18 sqm/h CMYK+W+V 14 sqm/h CMYK+W+V 10 sqm/h | CMYK+W 36 sqm/h CMYK+W 28 sqm/h CMYK+W 24 sqm/h |
Media | Dimension Media Type Media Thickness Media transfer | 800mm Acrylic, ceramic tiles, glass, aluminum, wooden doors, PVC sheet, carpet and other printed materials ≤100mm Belt transimission | |
Curing system | UV LED Lamp | ||
File Format | Tiff, Jpeg, Postscript, Eps, Pdf | ||
Cleaning | Positive pressure cleaning device | ||
Interface | USB | ||
Working Environment | Temperature: 18℃-30℃, Humidity : 30%-80% | ||
Power Supply | Frequency: 50HZ/60HZ Rated voltage: AC220V (±10%) | ||
Machine size | L2400 × W1800 × H1400 (mm) | ||
Machine Weight | 850Kg |
