Technical Characteristics
Machine can be equipped max 4 rows print heads G5/G6 for fast printing.
The flatbed can bear 50kgs/square meters, support maximum 100mm thickness material.
Color channels support 8 colors with multiple printing model. It provide various industry application solutions.
Easily to move heavy materials because of platform reverse blowing functions. (Optional)
Solid structure is equipped with double THK guide rail, magnetic levitation motor system for high precision printing.
With ruler & position pin on the table, for easy position.
Equipped with crash sensor and anti-static device.
Technical Specifications

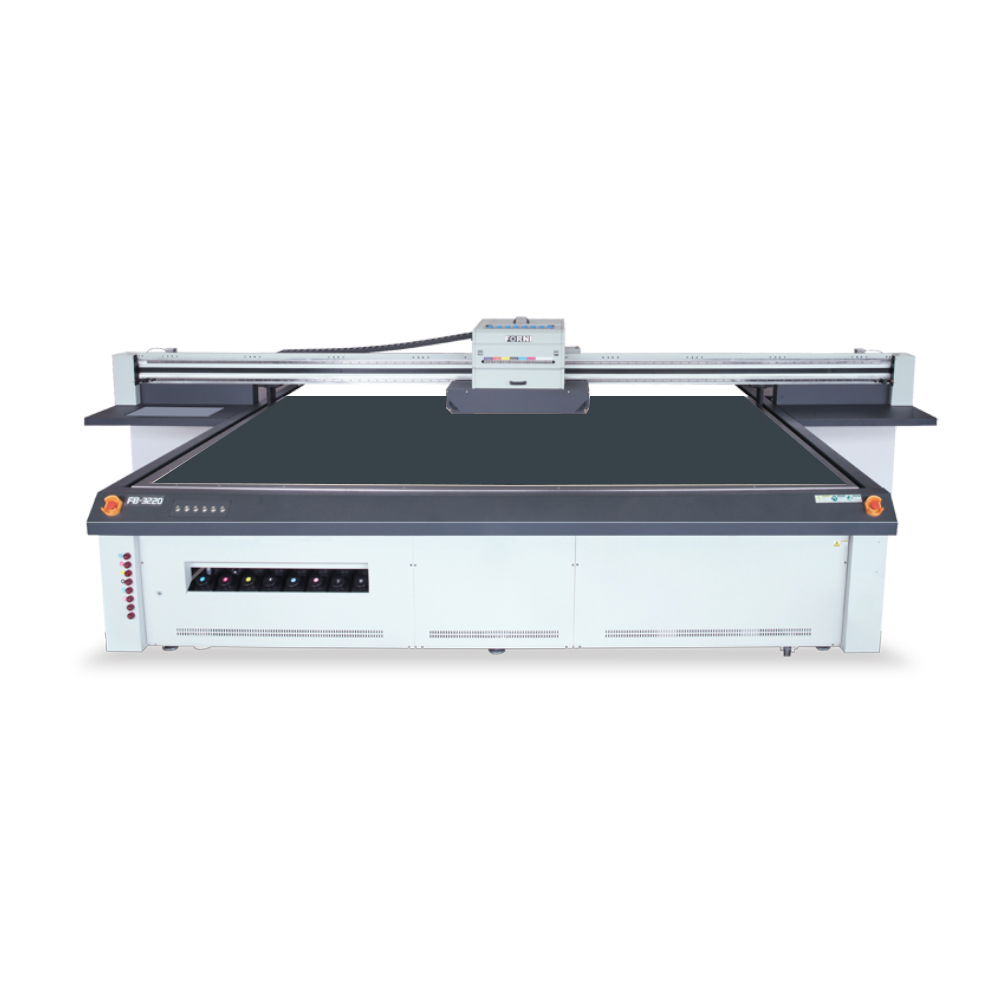

| Model |
| FB3220 |
| Print head | Print head QTY | Ricoh G5/G6 head 2~16pcs |
| Ink | Color Ink type Ink supply | C/M/Y/K/LC/LM/W/V UV ink Ink supply by pump |
| Speed | Production mode Quality mode Photo mode | 76~80 sqm/h 56~60 sqm/h 36~40 sqm/h |
| Media | Dimension Media type Media transfer | 3200mm ×2000mm Acrylic, ceramic tiles, glass, aluminum, wooden doors, PVC sheet, carpet and other printed materials Platform support |
| Cleaning |
| Positive pressure cleaning device |
| Rip software |
| Photoprint |
| Curing system |
| UV LED Lamp |
| File Format |
| Tiff, Jpeg, Postscript,Eps, Pdf |
| Interface |
| USB |
| Working Environment |
| Temperature: 18℃-30℃, Humidity : 30%-80% |
| Power Supply |
| Frequency: 50HZ/60HZ Power : Maximum 7500W Rated voltage: AC220V (±10% |
| Machine size |
| L5500 × W2800 × H1400 (mm) |
| Machine Weight |
| 1950Kg |
| Warranty |
| 1 year |
