Technical Characteristics
Machine can be equipped max 3 rows print heads G5/G6 for fast printing.
Multi printing model for options, c+w+c mode, w+c mode, c+w+v, full color mode etc. It can realize many applications.
Air-shaft take-up system for easy handling. Optional extension table for rigid boards printing.
Ink level alert system to reduce risks of ink shortage.
Independent temperature control for sub ink tank and intelligent negative-pressure ink supply system keeps smooth ink flow.
Technical Specifications
| Model |

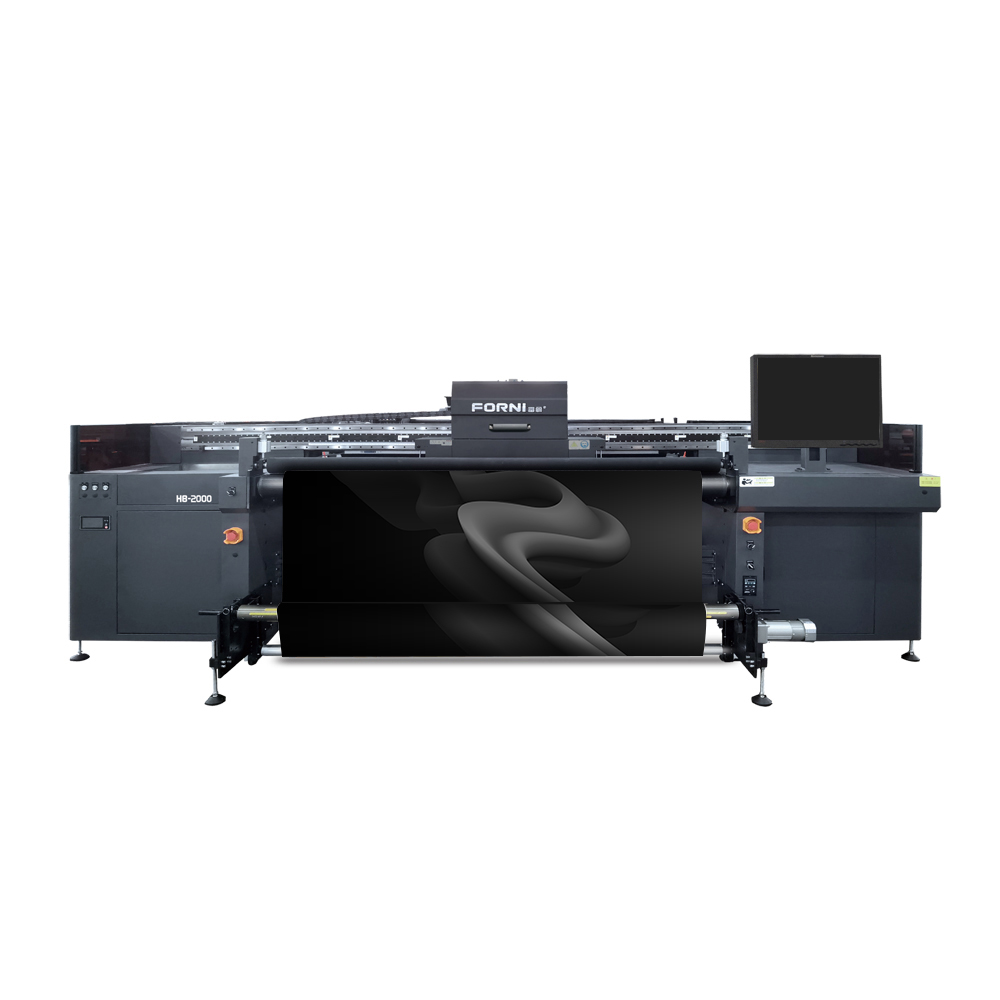

| HB-2000UV |
| Print Head | Print head QTY | Ricoh G6 Printhead 2~12pcs |
| Ink | Color Ink type | C/M/Y/K/W/V UV ink |
| Speed | Production mode Quality mode Photo mode | 50~60 m2/h (CMYK+W+V+CMYK) 46~50 m2/h (CMYK+W+V+CMYK) 26~30 m2/h (CMYK+W+V+CMYK) |
| Media | Dimension Printing size Media type Media transmission | 2020mm 2000mm PET, Sticker, Leather, Banners, Canvas and Rigid media Mesh belt feeding system |
| Cleaning |
| Manual cleaning device |
| Rip Software |
| Photoprint |
| Curing System |
| UV LED Lamp |
| File Format |
| Tiff, Jpeg, Postscript,Eps, Pdf |
| Interface |
| USB |
| Working Environment |
| Temperature: 18℃-29℃, Humidity: 50%-80% |
| Power Supply |
| Frequency: 50HZ/60HZ Power : Maximum 7500W Rated voltage: AC220V (±10%) |
| Machine Size |
| L4050 x W2000 x H1550[mm) |
| Machine Weight |
| 1200kg |
| Warranty |
| 1 year |
