Technical Characteristics
Machine equipped 4 rows print heads (3 rows if konica 1024i heads) for faster printing. Meanwhile for more industry application solutions.
The flatbed can bear 70kgs/square meters, support maximum 100mm thickness material.
More head arrangement and color channels support 8 colors printing.
Easily to move heavy materials because of platform with reverse blower.(Optional)
The high level machine equipped with 3 pcs metal magnetic grids for high precision printing.
The platform contains 4-zone vacuum area. It's cost effective to precise control depending on media size.
Visual ink level reminder to reduce risk of short ink.
Technical Specifications

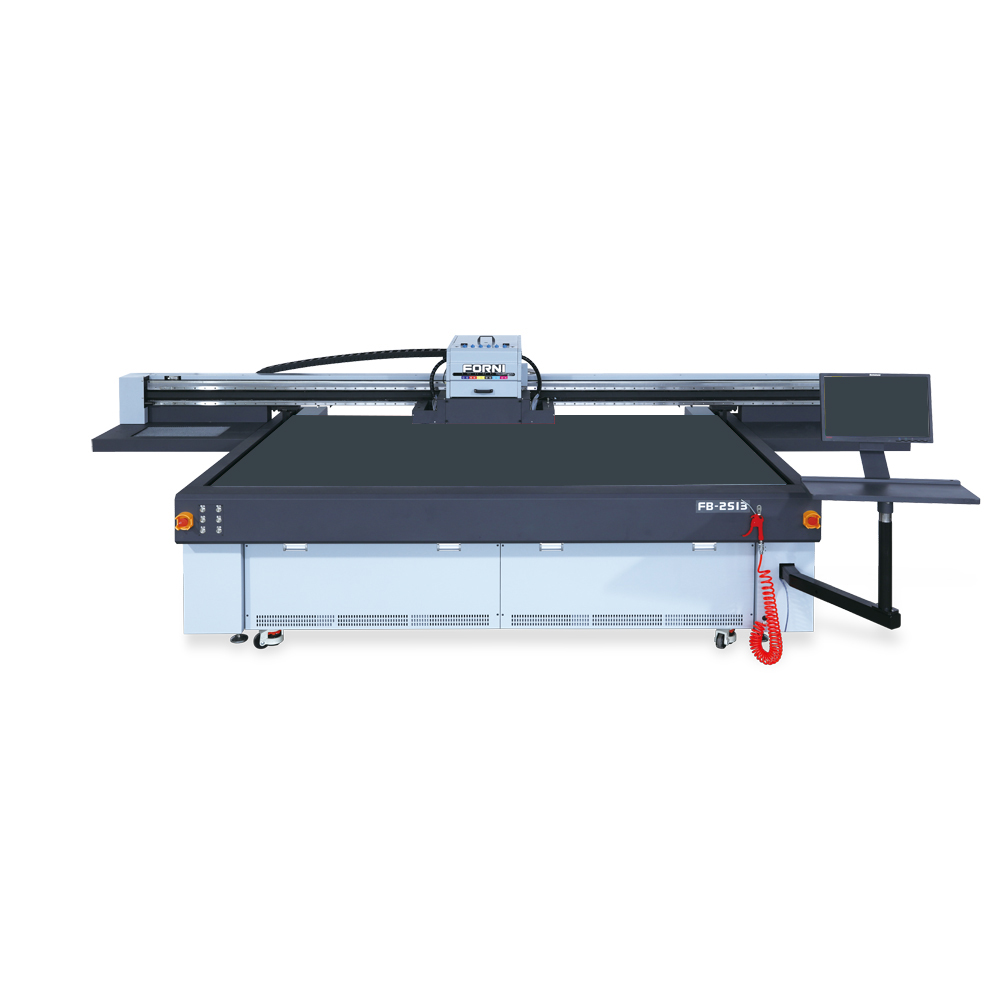

| Model |
| FB2513 |
| Print head | Print head QTY | Ricoh G5/G6/ Konica Printhead 3~16pcs |
| Ink | Color Ink Type Ink Supply | C/M/Y/K/LC/LM/V/W UV Ink Pump Ink Supply |
| Speed | Production mode Quality mode Photo mode | 76~80 sqm/h 56~60 sqm/h 36~40 sqm/h |
| Media | Dimension Media Type Media Thickness Media transfer | 2440mm × 1220mm Acrylic, ceramic tiles, glass, aluminum, wooden doors, PVC sheet, carpet and other printed materials ≤100mm Platform support |
| Curing system |
| UV LED Lamp |
| File Format |
| Tiff, Jpeg, Postscript, Eps, Pdf |
| Cleaning |
| Positive pressure cleaning device |
| Interface |
| USB |
| Working Environment |
| Temperature: 18℃-30℃, Humidity : 30%-80% |
| Power Supply |
| Frequency: 50HZ/60HZ Power : Maximum 7500W Rated voltage: AC220V (±10%) |
| Machine size |
| L4800 × W2600 × H1350 (mm) |
| Machine Weight |
| 1650Kg |
