Technical Characteristics
Machine equipped 2 rows print heads, support faster printing and more flexible investment options
The flatbed can bear 40kgs/square meters, support more printing media types
More colors channels,CMYK+W+V, you can choose to install varnish
Nearly ten years industry experience, to ensure the machine stability
Technical Specifications

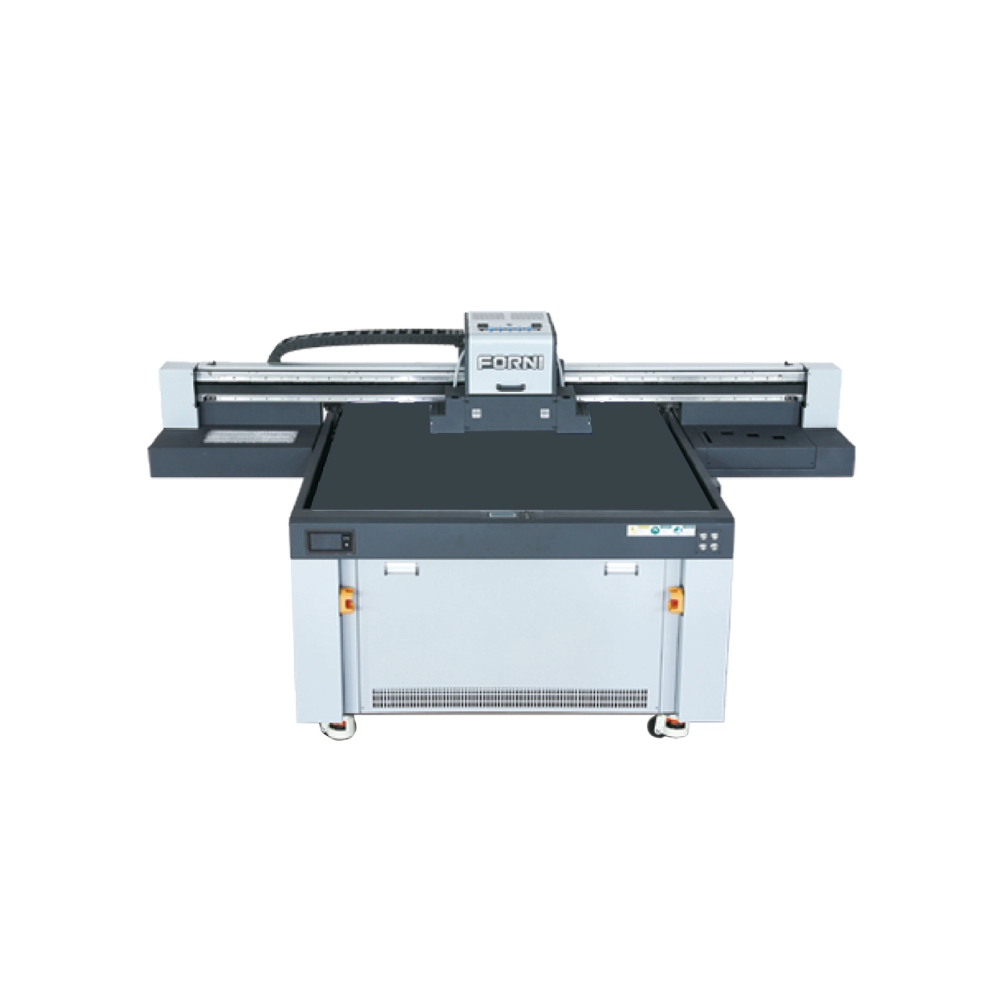

| Model | FB1216 |
|
| Print Head | Print head QTY | Epson/ Ricoh head 3PCS |
| Ink | Color Ink type Ink Supply | CMYK+W+V UV Ink Negative pressure ink supply |
| Speed | Production mode Quality mode Photo mode | 12 m2/h(CMYK+W) 10 m2/h(CMYK+W) 8 m2/h(CMYK+W) |
| Media | Dimension Media type Media transfer | 1620mm* 1220mm Plastic, Acrylic, glass, aluminum, ABS, floor mats, wood and other printed materials Belt feeding system |
| Cleaning |
| Positive pressure cleaning device |
| Interface |
| USB |
| Working Environment |
| Temperature: 18℃- 30℃, Humidity: 50%-80% |
| Power Supply |
| Rated frequency: 50HZ/60HZ Power : Maximum 7500W Rated voltage: AC220V (±10%) |
| Machine Size |
| L2600x W2120 x H1200 (mm) |
| Machine Weight |
| 820Kg |
