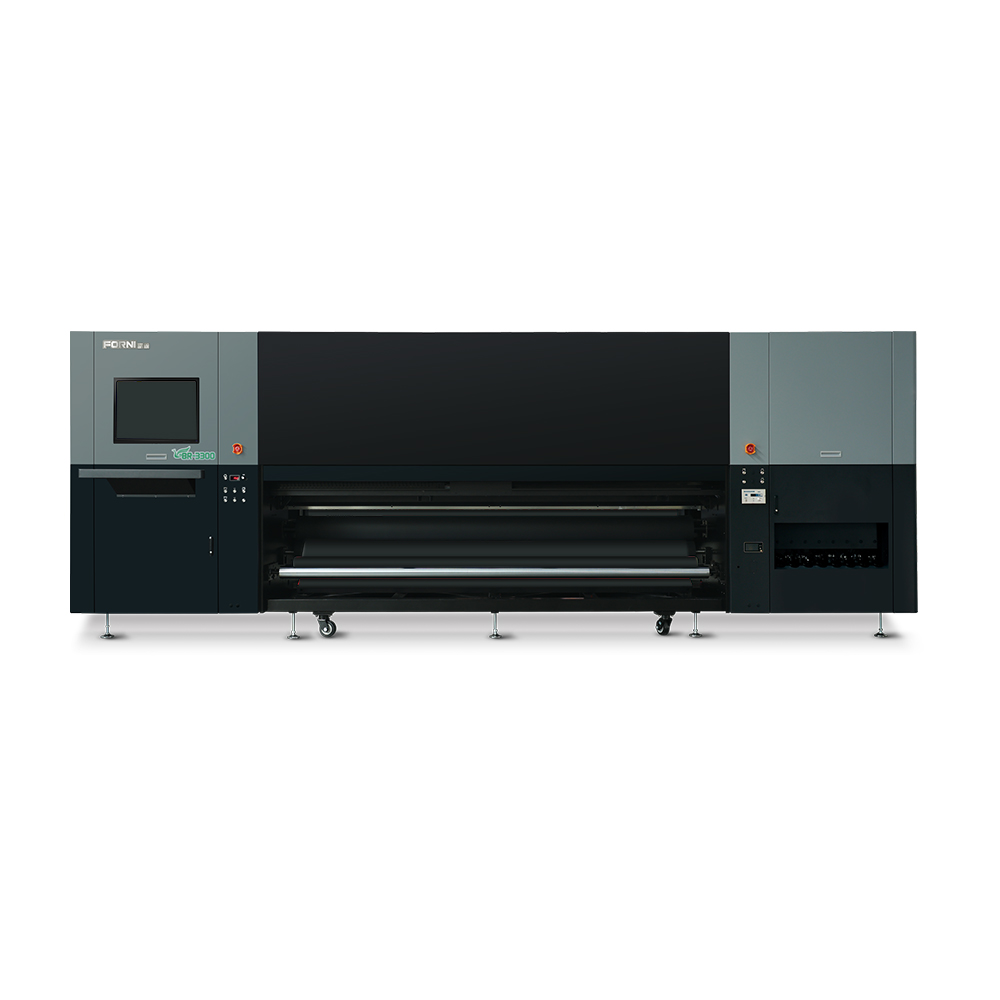

Technical Characteristics
It has robust and stable body which can print on many kinds of soft media, like pvc coated banner, soft film, display fabrics etc.
Benefiting from the environment-friendly UV LED curing technology, the machine achieves longer life, lower energy consumption.
The machine can print on same good quality pictures and same colors on the two sides of media simultaneously. It also can print different pictures on the twosides of medias
Visual ink level reminder to reduce risk of short ink.
Set individual ink pumping system for to ensure sufficient ink supply.
Technical Specifications
| Model |
| BR3300 | BR3300PRO |
| Print Head | Print head QTY | 16pcs Konica1024 A industrial heads | 24pcs |
| Ink | Color Ink type Ink supply | CMYKW UV ink Pump Ink Supply | CMYK |
| Speed | Production Mode Quality Mode | 57~60 m2/h 41~44 m2/h | 86~90 m2/h 62~66 m2/h |
| Media | Printing Width Media type Media transfer | 3200mm Soft Fil, PET, PVC banners Industrial rubber roller feeding | 3200mm |
| Rip Software |
| ONYX |
|
| Curing System |
| UV LED Lamp |
|
| File Format |
| Tiff, Jpeg, Postscript,Eps, Pdf |
|
| Cleaning |
| Automatic pump cleaning system |
|
| Interface |
| USB |
|
| Working Environment |
| Temperature: 18℃-30℃, Humidity : 30%-80% |
|
| Power Supply |
| Rated frequency: 50HZ/60HZ Rated voltage: AC220V (±10%) |
|
| Machine Size |
| L5800 × W1450 × H2100 |
|
| Machine Weight |
| 2450kg | 2450kg |
| Warranty |
| 1 year |
|
