Technical Characteristics
More applications
The machine adopts belt feeding system, it can compatible with soft and hard media, thick and thin media, compatible with more printing materials expanding your business Equipped with 6 rows piezoelectric heads for CMYK, W and Vanish, this printing solution can be applied to more industries to ensure the best performance of equipment.
High speed
Can install up-to 24 pcs industrial heads. 90m2/h for interior light mode, 144m2/h for exterior light model The UV ink without VOC can work better for the environment in printing process.
High stability
Nearly ten years experience of electrical machinery, ink transmission, desian and manufacturing in printing area, to ensure the machine stability Enhanced double THK mute guide rail & Liner motor ensure precision movement. Robust take-up system for easy handling. Optional extension table for large format rigia substrates printing.
Technical Specifications

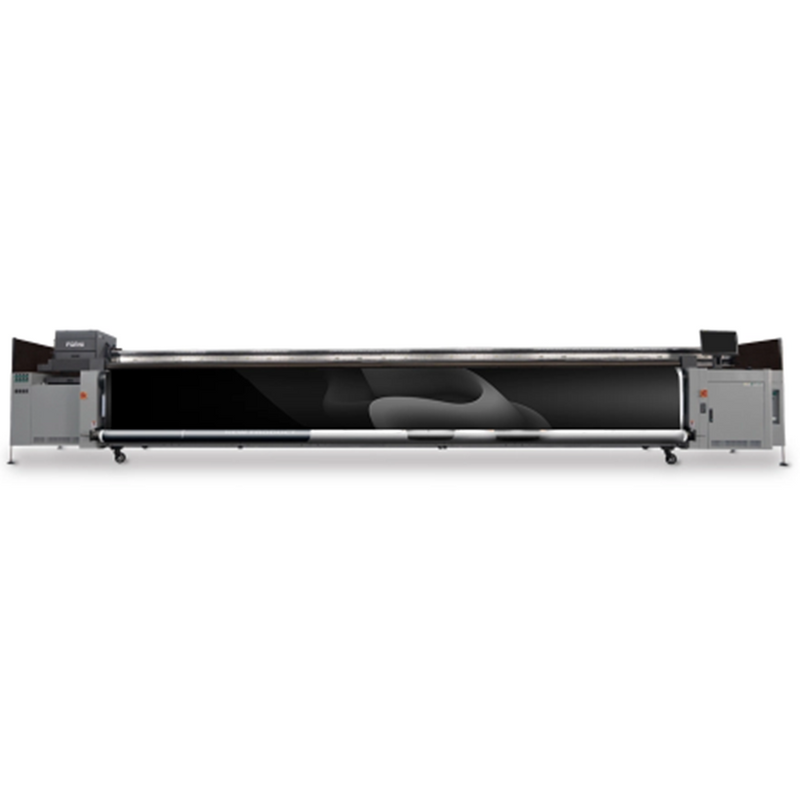

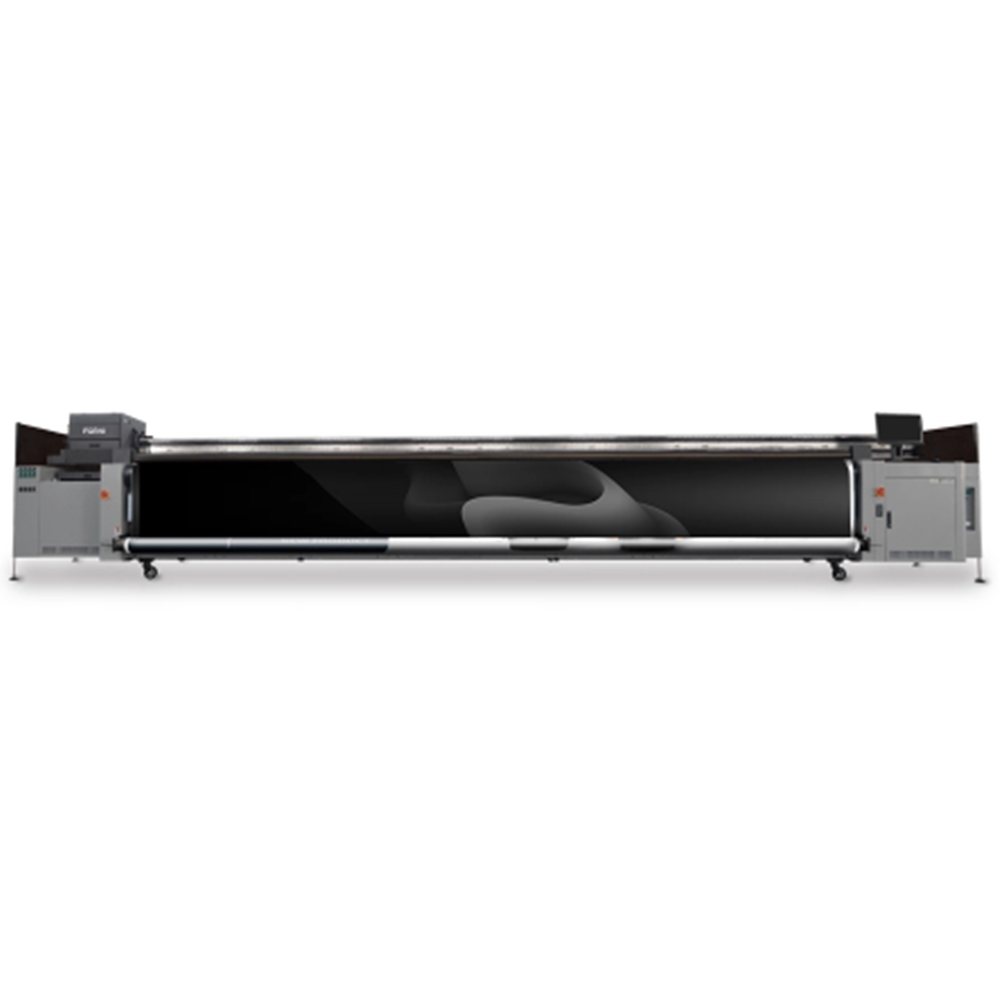

| Model | HB-5300 | |
| Print head | Print Head QTY | Konica / Ricoh Printhead 24 |
| Ink | Color Ink Type | CMYKW UV ink |
| Speed | Production mode Quality mode Photo mode | 180 sqm/h 132 sqm/h 105 sqm/h |
| Media | Printing size Media type Media transfer | 5000 mm Backlit Film, Car Stickers, Leather, One way vision sticker, Car sticker, Canvas and Other Printing Materials Belt feeding system |
| Cleaning | Automatic cleaning device | |
| Interface | USB | |
| Working Environment | Temperature: 18℃-29℃, Humidity : 50%-70% | |
| Power Supply | Rated frequency: 50HZ/60HZ Rated voltage: AC220V (±10%) | |
| Machine Size | L7850 x W1930x H1650 (mm) | |
| Machine Weight | 4500kg | |
Adopt advanced White Ink Circulation System to ensure consistent and reliable white ink printing, preventing ink settling and clogging. Linear Motor controls the movement of media with impeccable accuracy, minimizing printhead misalignment and ensuring flawless prints on every run, promising precision and efficiency. The printer has anti-collision function, it can protect the print head when any accident occurs, and reduce security risk.
Metal Encoder Strip technology takes print quality to the next level. By utilizing a high-precision metal encoder, we eliminate distortion and enhance fine details, ensuring crisp text and sharp imagery on a wide range of materials.
4 Zone of Vacuum Platform achieve exceptional print results on both rigid and flexible substrates. The powerful vacuum system holds your materials firmly in place during the printing process, preventing shifting or warping, even on large and heavy sheets.
